Description
MODEL 1630 – Large Animal Stereotaxic
Model 1630 Large Animal Stereotaxic is a large, heavy-duty instrument designed for proper stereotaxic placement of large research animals. While primarily constructed for sheep and goats, this instrument can be modified for use with large dogs, monkeys and other large animals.
Designed specifically for use with the Kopf 1760 series micro manipulators. Manipulator product specifications and options are located on catalog pages 62 – 65. (manipulators sold separately)
A/P Bar(s) – 21.65 mm square
A/P Bar length – 50.8 cm
A/P Bar calibration – 100 mm each side of zero (ear bar centerline)
Frame Bar centerline distance – 21.59 cm
A/P zero to posterior end of bar – 14.28 cm
Ear Bar Locator position – A/P zero

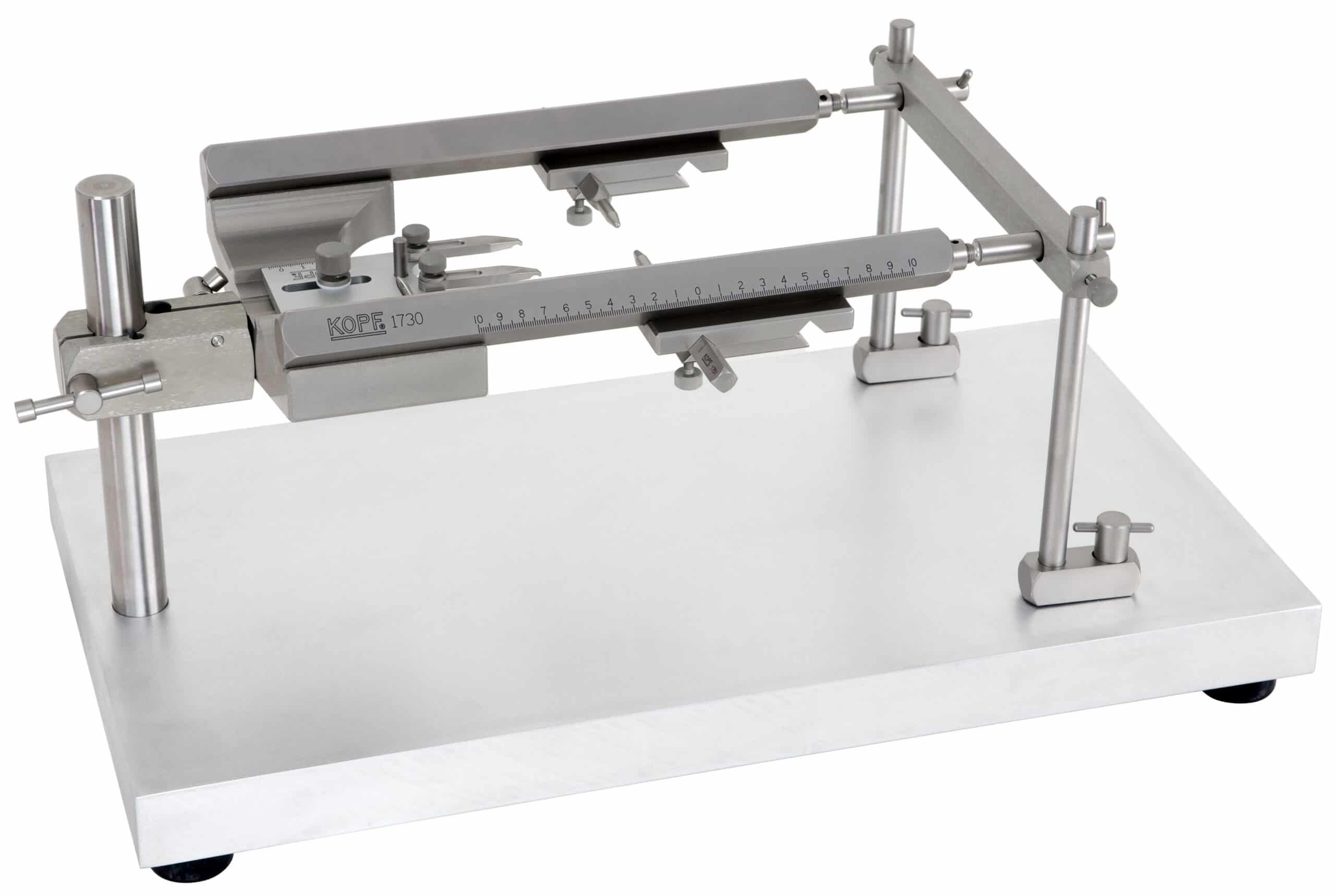

MODEL 1730 Intracellular Frame Assembly
Model 1730 Intracellular Frame Assembly is designed primarily for intracellular recording and stimulation where high inertia, precision and clear access to the head during surgery are paramount.
Cell penetration without surrounding damage demands the utmost in technique. This instrument has the mass and rigidity necessary for use with ultra-fine micro manipulators or micropositioners. Designed specifically for use with the Kopf 1760 series Micro Manipulators. Manipulator product specifications and options are located here.
A/P Bar(s) – 21.65 mm square
A/P Bar length – 30.50 cm
A/P Bar calibration – 100 mm each side of zero (ear bar centerline)
Frame Bar centerline distance – 17.78 cm
A/P zero to posterior end of bar -12.08 cm
Ear Bar Locator position – A/P zero
