Description
Primary applications include intracellular recording and microiontophoresis
- Machined from the highest quality acrylic, annealed and then vapor polished
- Capillary glass holders are bored for specific glass sizes (e.g. 1.0, 1.2, 1.5, and 2.0 mm)
- Holders are available for virtually any headstage
- Ag/AgCl Pellet and Ag Wire styles available

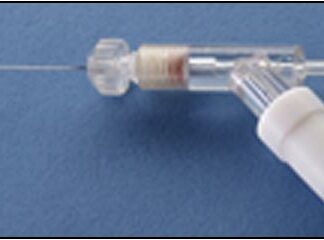

- Holders can include a port to apply pressure or suction
- Holders can be vented to equalize internal pressure
Spécifications
| Wire/Pellet | Connector | Port | Glass OD (mm) | Model | Order No. | Image |
|---|---|---|---|---|---|---|
| Pellet | 2 mm Pin | No | 1.0 | ESP-M10N | 64-0992 |  |
| 1.2 | ESP-M12N | 64-0993 | ||||
| 1.5 | ESP-M15N | 64-0994 | ||||
| 1.7 | ESP-M17N | 99-0099 | ||||
| 2.0 | ESP-M20N | 64-1260 | ||||
| Yes | 1.0 | ESP-M10P | 64-0995 |  |
||
| 1.2 | ESP-M12P | 64-0996 | ||||
| 1.5 | ESP-M15P | 64-0997 | ||||
| 1.7 | ESP-M17P | 99-0100 | ||||
| 2.0 | ESP-M20P | 64-0998 | ||||
| 2 mm Jack | No | 1.0 | ESP-F10N | 64-0980 |  |
|
| 1.2 | ESP-F12N | 64-0981 | ||||
| 1.5 | ESP-F15N | 64-0982 | ||||
| 1.7 | ESP-F17N | 64-0982S17 | ||||
| 2.0 | ESP-F20N | 64-0983 | ||||

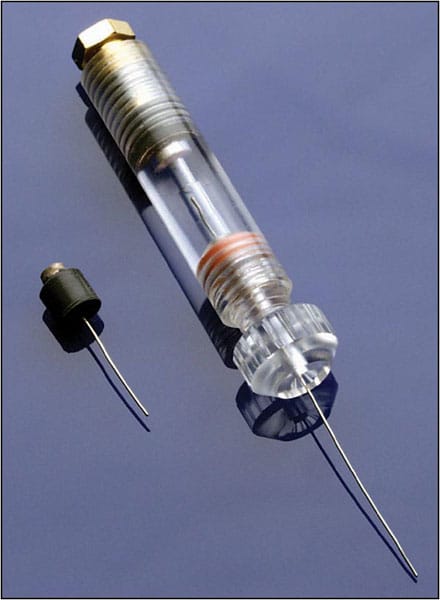

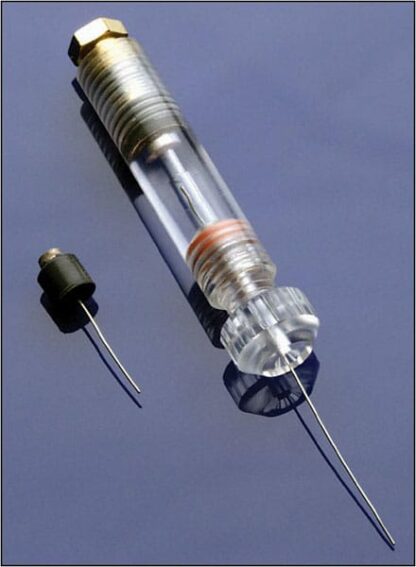

| 1.0 | ESP/W-F10N | 64-0964 |  |
|||
| 1.2 | ESP/W-F12N | 64-0965 | ||||
| 1.5 | ESP/W-F15N | 64-0966 | ||||
| 1.7 | ESP/W-F17N | Call | ||||
| 2.0 | ESP/W-F20N | 64-0967 | ||||
| Yes | 1.0 | ESP-F10P | 64-0984 |  |
||
| 1.2 | ESP-F12P | 64-0985 | ||||
| 1.5 | ESP-F15P | 64-0986 | ||||
| 1.7 | ESP-F17P | Call | ||||
| 2.0 | ESP-F20P | 64-0987 | ||||
| 1.0 | ESP-F10V | 64-0988 | ||||
| 1.2 | ESP-F12V | 64-0989 | ||||
| 1.5 | ESP-F15V | 64-0990 | ||||
| 2.0 | ESP-F20V | 64-0991 | ||||
| Wire/Pellet | Connector | Port | Glass OD (mm) | Model | Order No. | Image |
| Wire | 2 mm Pin | No | 1.0 | ESW-M10N | 64-1011 |  |
| 1.2 | ESW-M12N | 64-1012 | ||||
| 1.5 | ESW-M15N | 64-1013 | ||||
| 1.7 | ESW-M17N | Call | ||||
| 2.0 | ESW-M20N | 64-1014 | ||||
| Yes | 1.0 | ESW-M10P | 64-1015 |  |
||
| 1.2 | ESW-M12P | 64-1016 | ||||
| 1.5 | ESW-M15P | 64-1017 | ||||
| 1.7 | ESW-M17P | Call | ||||
| 2.0 | ESW-M20P | 64-1018 | ||||
| 2 mm Jack | No | 1.0 | ESW-F10N | 64-0999 |  |
|
| 1.2 | ESW-F12N | 64-1000 | ||||
| 1.5 | ESW-F15N | 64-1001 | ||||
| 1.7 | ESW-F17N | Call | ||||
| 2.0 | ESW-F20N | 64-1002 | ||||
| Yes | 1.0 | ESW-F10P | 64-1003 |  |
||
| 1.2 | ESW-F12P | 64-1004 | ||||
| 1.5 | ESW-F15P | 64-1005 | ||||
| 1.7 | ESW-F17P | Call | ||||
| 2.0 | ESW-F20P | 64-1006 | ||||
| Vent | 1.0 | ESW-F10V | 64-1007 |  |
||
| 1.2 | ESW-F12V | 64-1008 | ||||
| 1.5 | ESW-F15V | 64-1009 | ||||
| 1.7 | ESW-F17V | 99-0146 | ||||
| 2.0 | ESW-F20V | 64-1010 |
