Description
The MP SERIES holders are designed for the non-electrical application of pressure or suction to a pipette.
- Used primarily for microinjection
- Various pressure port connections are available
- Holders with the T port designation are compatible with the Picospritzer® system made by General Valve
Spécifications
| Body Style | Port | Glass OD (mm) | Model | Order No. | Image |
|---|---|---|---|---|---|
| Straight | 1/16″ Barb | 1.0 | MP-S10A | 64-1261 |  |
| 1.2 | MP-S12A | 64-1262 | |||
| 1.5 | MP-S15A | 64-1263 | |||
| 1.7 | MP-S17A | Call | |||
| 2.0 | MP-S20A | 64-1264 | |||
| 3/32″ Barb | 1.0 | MP-S10B | 64-1265 |  |
|
| 1.2 | MP-S12B | 64-1266 | |||
| 1.5 | MP-S15B | 64-1267 | |||
| 1.7 | MP-S17B | Call | |||
| 2.0 | MP-S20B | 64-1268 | |||
| Male Luer | 1.0 | MP-S10ML | 64-1273 |  |
|
| 1.2 | MP-S12ML | 64-1274 | |||
| 1.5 | MP-S15ML | 64-1275 | |||
| 1.7 | MP-S17ML | Call | |||
| 2.0 | MP-S20ML | 64-1276 | |||

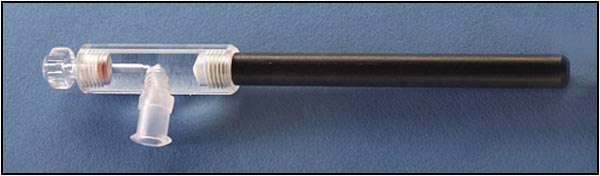

| Female Luer | 1.0 | MP-S10FL | 64-1269 |  |
|
| 1.2 | MP-S12FL | 64-1270 | |||
| 1.5 | MP-S15FL | 64-1271 | |||
| 1.7 | MP-S17FL | Call | |||
| 2.0 | MP-S20FL | 64-1272 | |||
| Threaded ¼-28 | 1.0 | MP-S10T | 64-1278 |  |
|
| 1.2 | MP-S12T | 64-1279 | |||
| 1.5 | MP-S15T | 64-1280 | |||
| 1.7 | MP-S17T | 99-0129 | |||
| 2.0 | MP-S20T | 64-1281 |
