Description
For Microperfusion (perfusing inside the micropipette)

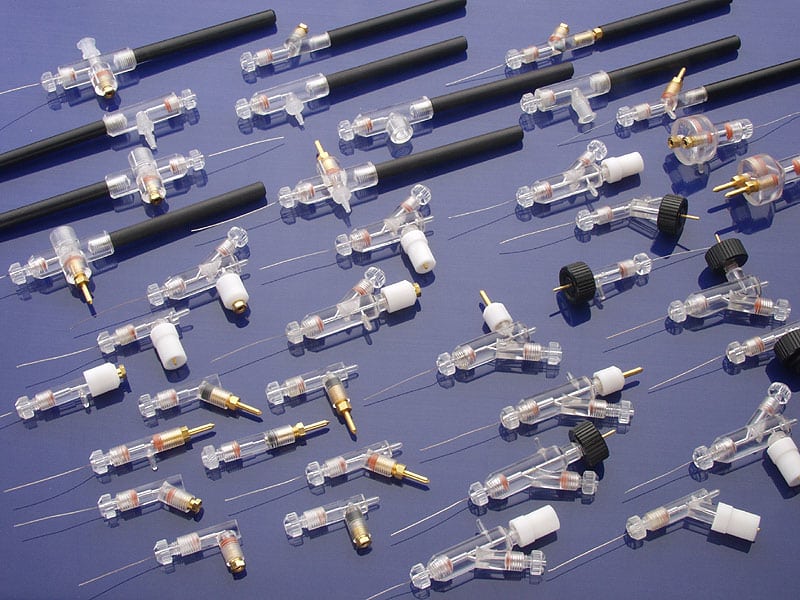

Perfusion at the electrode tip is possible with the PE Series holders. They include an additional port in-line with the glass bore allowing for the insertion of microbore tubing into the pipette. This port includes a threaded cap and seal for up to 1 mm diameter tubing. See the reports referenced below for information on the microperfusion technique.
Applications
Microperfusion (perfusion at the pipette tip)*
Spécifications
| Patch Clamp Compatibility | |
|---|---|
| Connector | For use with |
| 1 mm Pin | Warner Patch Clamp Models PC-501 & PC-505 Axon Patch Clamps prior to 2/1/95 |
| BNC | List, Heka and Dagan Patch Clamps |
| 1 mm Pin with threaded collar | Axon Patch Clamps and Microelectrode Amps prior to 2/1/95 |
| Wire/Pellet | Body Style | Port | Connector | Glass OD (mm) | Model | Order # | |
|---|---|---|---|---|---|---|---|
| Wire | 30 | Yes | 1 mm Pin | 1.0 | PE30W-A10P | 64-1761 |  |
| 1.2 | PE30W-A12P | 64-1762 | |||||
| 1.5 | PE30W-A15P | 64-1763 | |||||
| 1.7 | PE30W-A17P | 64-1764 | |||||
| 2.0 | PE30W-A20P | 64-1765 | |||||
| BNC | 1.0 | PE30W-B10P | 64-1766 |  |
|||
| 1.2 | PE30W-B12P | 64-1767 | |||||
| 1.5 | PE30W-B15P | 64-1768 | |||||
| 1.7 | PE30W-B17P | 64-1769 | |||||
| 2.0 | PE30W-B20P | 64-1770 | |||||
| 1 mm pin Threaded Collar | 1.0 | PE30W-T10P | 64-1771 |  |
|||
| 1.2 | PE30W-T12P | 64-1772 | |||||
| 1.5 | PE30W-T15P | 64-1773 | |||||
| 1.7 | PE30W-T17P | 64-1774 | |||||
| 2.0 | PE30W-T20P | 64-1775 |
