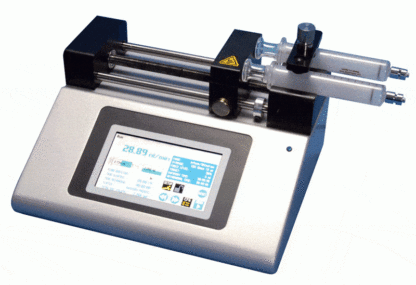

Pousse-seringue 2 voies Legato 101

Catégories : , , ,

Description

Infuse only dual syringe pump. Accomodates syringes 0.5ul to 10ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features:

  • Holds one or two syringes from 0.5ul to 10ml
  • High resolution color touch screen
  • Unparalled ease of use
  • Touch pad « lock » feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 30 lbs linear force
  • Advanced microstepping techniques
  • Built in RS485 interface
  • USB port
  • I/O & TTL interface
  • Continuous mode of operation
  • Spill dam
Specifications
Accuracy:
  • ± 0.5%
Reproducibility
  • ± 0.05%
Syringes (Min/Max)
  • 0.5 ul to 10ml
Flow Rate:
  • Minimum (0.5 ul syringe): 1.28 pl/min
  • Maximum (10ml syringe): 25.99 ml/min
Display
  • 4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory
  • Stores all Settings
Connectors:
  • RS485 – IEEE-1394 6 pos
  • USB – Type B
  • I/O & TTL – 15 pin D-Sub Connector
Linear Force (Max)
  • 13.6 kg (30 lbs) @ 100% Force Selection
Drive Motor
  • 0.9 Stepper Motor
Motor Drive Control
  • Microprocessor with 1/16 microstepping
Number of Microsteps
per one rev.of Lead Screw
  • 15,360
Step Revolution
  • 0.069 um/step
Step Rate – Minimum
  • 27.5 sec/ustep
Step Rate – Maximum
  • 26 usec/ustep
Pusher Travel Rate – Minimum
  • 0.15 um/min
Pusher Travel Rate – Maximum
  • 159 mm/min
Power
  • 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions
  • 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
Weight
  • 2.66 kg (5.9 lbs)
Operating Temperature
  • 4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature
  • -10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity
  • 20% to 80% RH non condensing
Mode of Operation
  • Continuous
Classification
  • Class 1
Pollution Degree
  • 1
Installation Category
  • 11
Regulatory Certification
  • CE, UL, CSA, CB Scheme, EU RoHS
