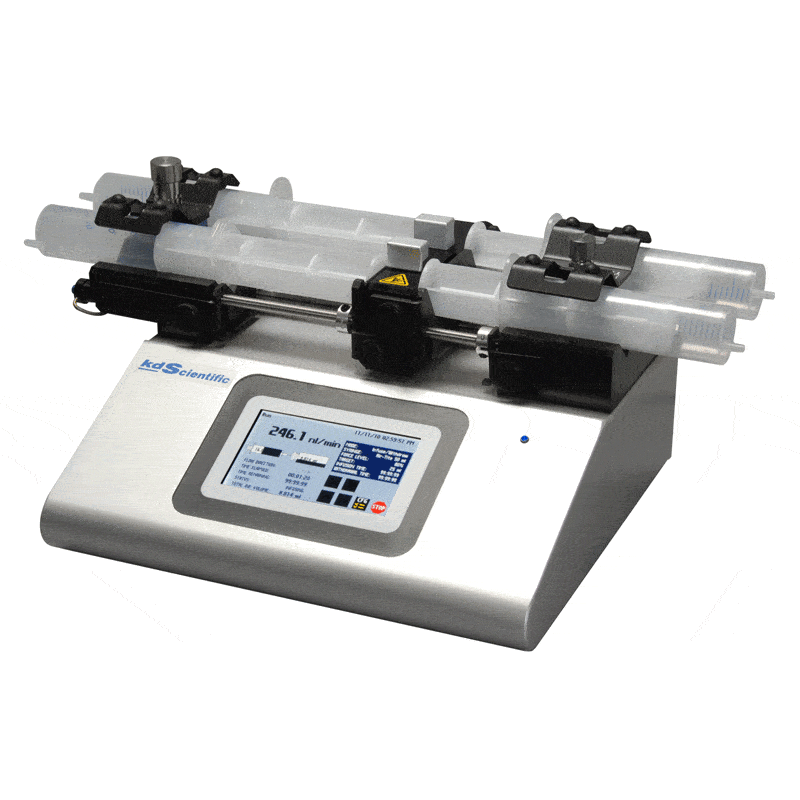

Pousse-seringue Legato 270

Catégories : ,

Description

Push/pull syringe pump. Accomodates two syringes for infusion and two syringes for withdrawal. This model supports infusion and withdrawal simultaneously at user defined flow rates and with selectable target volumes to control the total volume pumped. It also supports infuse only, withdraw only, infuse/withdraw/ withdraw/infuse and continuous mode. user defined flow rates with selectable target volumes.

Features:

  • Holds four syringe from 0.5 ul to 140ml
  • High resolution color touch screen
  • Real time clock
  • Unparallel ease of use
  • Touch pad « lock » feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 75 lbs linear force
  • Advanced microstepping techniques
  • Built in RS485 interface
  • USB port
  • I/O & TTL interface
  • Continuous mode of operation
  • Spill dam

LEGATO INHERITS KD SCIENTIFIC’S LEGENDARY RELIABILITY

Our experience in pumps and fluidics was used to create the Legato 200 Series. Over the years, customers had asked to display more information simultaneously and make it easier to configure and run complicated multi-step programs. The high resolution touch screen interface offers unparalleled ease of use. Today’s demanding applications require better flow performance and repeatability down to 1 nl/hr.  Legato offers 0.35% accuracy and 0.5% repeatability.

DESIGNED TO MEET TODAY’S CHALLENGES

In today’s economic environment, multiple users with different experiments are using the same pump.  The next generation of pump had to meet this demand to store and recall multiple programs.  The pumps role in the experiment now changes more readily with multiple users and multiple tests being done using a single pump.

ENGINEERED TO MEET GLOBAL REGULATORY COMPLIANCE

Worldwide use of our pumps and changing regulatory compliance meant designing the pump to meet RoHS and WEEE, CE, UL, CSA, and CB schemes.  The Legato has lead free boards and is designed to the latest safety and EMI/RFI standards.

Specifications
Accuracy:
  • ± 0.35%
Reproducibility
  • ± 0.05%
Syringes (Min/Max)
  • 0.5 ul to 140ml
Flow Rate:
  • Minimum (0.5 ul syringe): 5pl/min
  • Maximum (140ml syringe): 220.97 ml/min
Display
  • 4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory
  • Stores all Settings
Connectors:
  • RS232 – 9Pin D-Sub Connector
  • RS485 – IEEE-1394 6 pos
  • USB – Type B
  • I/O & TTL – 15 pin D-Sub Connector
Linear Force (Max)
  • 34 kg (75 lbs) @ 100% Force Selection
Drive Motor
  • 1.8 degree Stepper Motor
Motor Drive Control
  • Microprocessor with 1/16 microstepping
Number of Microsteps
per one rev.of Lead Screw
  • 6,400
Step Rate – Minimum
  • 27.5 sec/ustep
Step Rate – Maximum
  • 26 usec/ustep
Pusher Travel Rate – Minimum
  • 0.36 um/min
Pusher Travel Rate – Maximum
  • 190.80 mm/min
Power
  • 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions
  • 8.89 x 25.4 x 27.94 cm (3.5 x 10 x 11 in)
Weight
  • 4.9 Kg (10.75 lb)
Operating Temperature
  • 4 degree’C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature
  • -10 degreeC to 70 degree C (14 degree F to 158 degree F)
Humidity
  • 20% to 80% RH non condensing
Mode of Operation
  • Continuous
Classification
  • Class 1
Pollution Degree
  • 1
Installation Category
  • 11
Regulatory Certification
  • CE, UL, CSA, CB Scheme, EU RoHS
