Description
These electrode holders are compatible with Axon’s patch clamps and microelectrode amplifiers made after February 1995.
- Made from polycarbonate for lower noise levels in patch clamp applications.
- Gold-plated connector pins, insulators made from Teflon® or polycarbonate.
- Holders attach directly to the headstage. Available with choice of straight (axial), right angle or 45° body.
Spécifications
| Wire/Hybrid | Body Style | Port | Glass OD (mm) |
Model | Order No. | Image |
|---|---|---|---|---|---|---|
| Wire | Straight | No | 1.0 | QSW-T10N | 64-1121 |  |
| 1.2 | QSW-T12N | 64-1122 | ||||
| 1.5 | QSW-T15N | 64-1123 | ||||
| 1.7 | QSW-T17N | 64-0749 | ||||
| 2.0 | QSW-T20N | 64-1124 | ||||

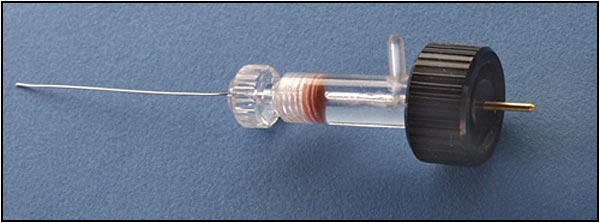

| Yes | 1.0 | QSW-T10P | 64-0837 |  |
||
| 1.2 | QSW-T12P | 64-0838 | ||||
| 1.5 | QSW-T15P | 64-0839 | ||||
| 1.7 | QSW-T17P | 64-1097 | ||||
| 2.0 | QSW-T20P | 64-0840 | ||||
| 45° | No | 1.0 | Q45W-T10N | 64-0857 |  |
|
| 1.2 | Q45W-T12N | 64-0858 | ||||
| 1.5 | Q45W-T15N | 64-0859 | ||||
| 1.7 | Q45W-T17N | 64-1102 | ||||
| 2.0 | Q45W-T20N | 64-0860 | ||||
| Yes | 1.0 | Q45W-T10P | 64-1071 |  |
||
| 1.2 | Q45W-T12P | 64-1072 | ||||
| 1.5 | Q45W-T15P | 64-1073 | ||||
| 1.7 | Q45W-T17P | 64-0972 | ||||
| 2.0 | Q45W-T20P | 64-1074 | ||||
| 90° | No | 1.0 | QRW-T10N | 64-0877 |  |
|
| 1.2 | QRW-T12N | 64-0878 | ||||
| 1.5 | QRW-T15N | 64-0879 | ||||
| 1.7 | QRW-T17N | 64-0744 | ||||
| 2.0 | QRW-T20N | 64-0880 | ||||
| Yes | 1.0 | QRW-T10P | 64-1091 |  |
||
| 1.2 | QRW-T12P | 64-1092 | ||||
| 1.5 | QRW-T15P | 64-1093 | ||||
| 1.7 | QRW-T17P | 64-0977 | ||||
| 2.0 | QRW-T20P | 64-1094 | ||||
| Hybrid | Straight | No | 1.5 | QSH-T15N | 64-1363 |  |
| 1.7 | QSH-T17N | 64-1364 | ||||
| 2.0 | QSH-T20N | 64-1365 | ||||
| Yes | 1.5 | QSH-T15P | 64-1366 |  |
||
| 1.7 | QSH-T17P | 64-1367 | ||||
| 2.0 | QSH-T20P | 64-1368 |
