Description
These electrode holders are compatible with Warner patch clamps built prior to
- Made from polycarbonate for lower noise levels in patch clamp applications.
- Gold-plated connector pins, connector insulators made from Teflon® or polycarbonate.
- Holders attach directly to the headstage, are available with choice of straight (axial), right angle or 45° body.
Spécifications
| Wire | Body Style | Port | Glass OD (mm) | Model | Order No. | Image |
|---|---|---|---|---|---|---|
| Ag Wire | Straight | No | 1.0 | QSW-F10N | 64-1113 |  |
| 1.2 | QSW-F12N | 64-1114 | ||||
| 1.5 | QSW-F15N | 64-1115 | ||||
| 1.7 | QSW-F17N | 64-0747 | ||||
| 2.0 | QSW-F20N | 64-1116 | ||||

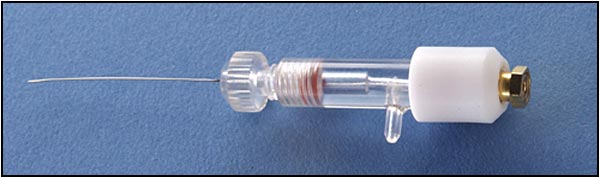

| Yes | 1.0 | QSW-F10P | 64-0829 |  |
||
| 1.2 | QSW-F12P | 64-0830 | ||||
| 1.5 | QSW-F15P | 64-0831 | ||||
| 1.7 | QSW-F17P | 64-1095 | ||||
| 2.0 | QSW-F20P | 64-0832 | ||||
| 45° | No | 1.0 | Q45W-F10N | 64-0849 |  |
|
| 1.2 | Q45W-F12N | 64-0850 | ||||
| 1.5 | Q45W-F15N | 64-0851 | ||||
| 1.7 | Q45W-F17N | 64-1100 | ||||
| 2.0 | Q45W-F20N | 64-0852 | ||||
| Yes | 1.0 | Q45W-F10P | 64-1063 |  |
||
| 1.2 | Q45W-F12P | 64-1064 | ||||
| 1.5 | Q45W-F15P | 64-1065 | ||||
| 1.7 | Q45W-F17P | 64-0970 | ||||
| 2.0 | Q45W-F20P | 64-1066 | ||||
| 90° | No | 1.0 | QRW-F10N | 64-0869 |  |
|
| 1.2 | QRW-F12N | 64-0870 | ||||
| 1.5 | QRW-F15N | 64-0871 | ||||
| 1.7 | QRW-F17N | 64-0742 | ||||
| 2.0 | QRW-F20N | 64-0872 | ||||
| Yes | 1.0 | QRW-F10P | 64-1083 |  |
||
| 1.2 | QRW-F12P | 64-1084 | ||||
| 1.5 | QRW-F15P | 64-1085 | ||||
| 1.7 | QRW-F17P | 64-0975 | ||||
| 2.0 | QRW-F20P | 64-1086 |
